0x0

样本：

play.google.com

Lost Sword - Google Play 上的应用

波涛胸涌&华丽冒险传说！好胸的冒...

Free

正主：

largosoft.co.kr

라르고소프트|LARGOSOFT

라르고소프트는 게임 보안 솔루션 개발에 특화된 기업으로, 게임 환경에서 발생하는 다양한 보안 위협을 효과적으로 방어하는 기술을 제공합니다.

非常非常简单的反作弊，很适合新手入门，完全没任何难度

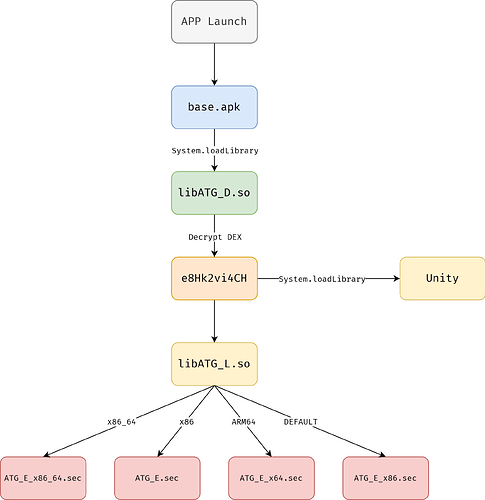

0x1 整体流程

base.apk 里面的 Dalvik字节码拉起 libATG_D.so
libATG_D.so 解密 e8Hk2vi4CH 为正常的 Dalvik字节码，然后注入进去，后续执行的是注入进去的 Dalvik字节码
解密后的 e8Hk2vi4CH Dalvik字节码拉起正常的Unity进程，同时拉起 libATG_L.so
libATG_L.so 根据架构解密拉起 ATG_E来进行环境检测，日志上报等等

0x2 `libATG_D.so`

com/bishopsoft/Presto/SDK/Loader.java 载入 libATG_D.so

public class Loader extends Application	// class@00018b from classes.dex
{
    private String mAppName;
    private Application mDelegate;
    private boolean mIsBindReal;
    private static ByteBuffer[] Buffers;
    private static Context mContext;

    static {
       System.loadLibrary("ATG_D");
    }

System.loadLibrary 会调用 libATG_D.so 的 JNI_OnLoad，随后调用 JNI_OnLoad.54

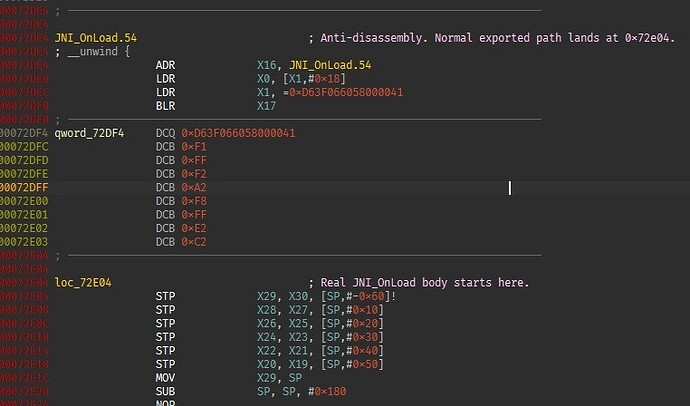

JNI_OnLoad.54 开头有些垃圾代码狙击IDA的反编译

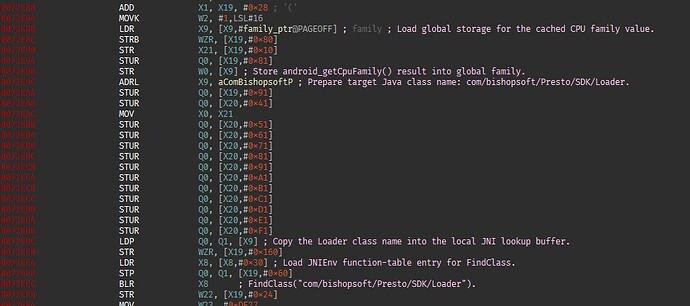

缓存运行环境信息

找到 Java 类

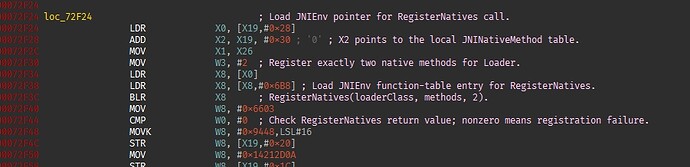

注册两个 native 方法

Loader.InitBuffer
  signature: (Landroid/content/Context;Ljava/lang/String;Ljava/lang/String;Landroid/content/res/AssetManager;)Ljava/lang/Object;
  native: 0x79004 -> real body 0x75660

Loader.native_InitLib
  signature: (Landroid/content/Context;Landroid/content/res/AssetManager;Z)I
  native: 0x77594 -> real body 0x740f8

JNI_OnLoad 返回到 Java，调用 InitBuffer 解密 Dalvik字节码

public native Object InitBuffer(Context p0,String p1,String p2,AssetManager p3);
public void attachBaseContext(Context paramContext){
   try{
      super.attachBaseContext(paramContext);
      AssetManager assets = paramContext.getAssets();
      this.native_InitLib(paramContext, assets, false);
      Loader.Buffers = this.InitBuffer(paramContext, paramContext.getApplicationInfo().dataDir, paramContext.getApplicationInfo().nativeLibraryDir, assets);
      if (Loader.Buffers != null) {
         this.loadDex(paramContext);
      }
   }catch(java.lang.NoSuchFieldException e1){
      e1.printStackTrace();
   }catch(java.lang.IllegalAccessException e1){
      e1.printStackTrace();
   }catch(java.lang.NoSuchMethodException e1){
      e1.printStackTrace();
   }catch(java.lang.reflect.InvocationTargetException e1){
      e1.printStackTrace();
   }
   return;
}

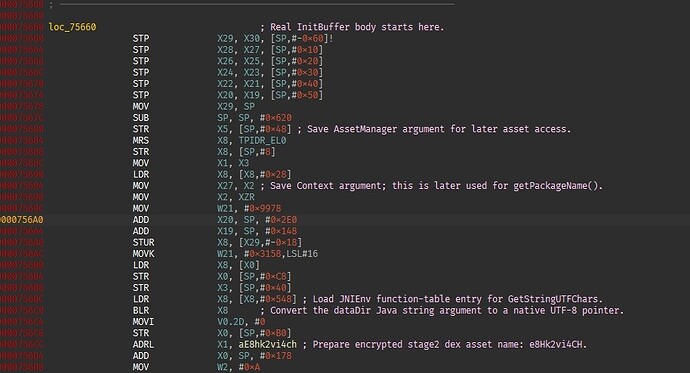

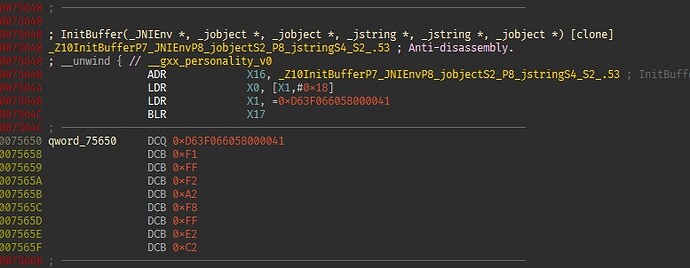

开头依旧狙击IDA反编译

取 e8Hk2vi4CH 的路径

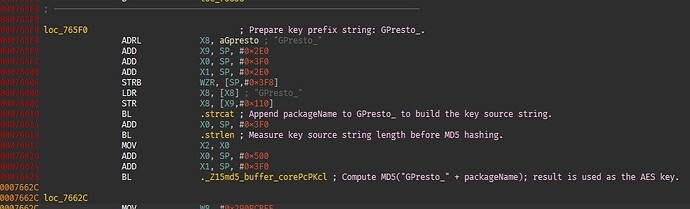

派生密钥

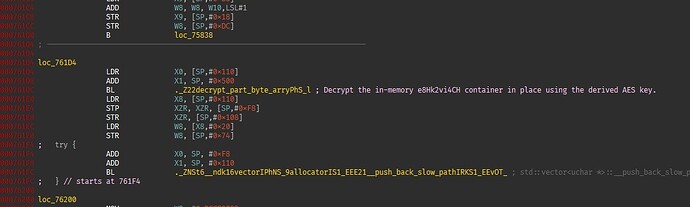

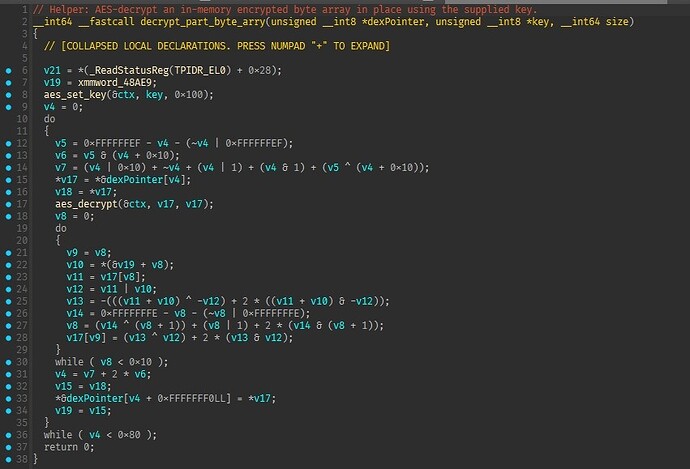

用派生出来的密钥跑AES解密 e8Hk2vi4CH

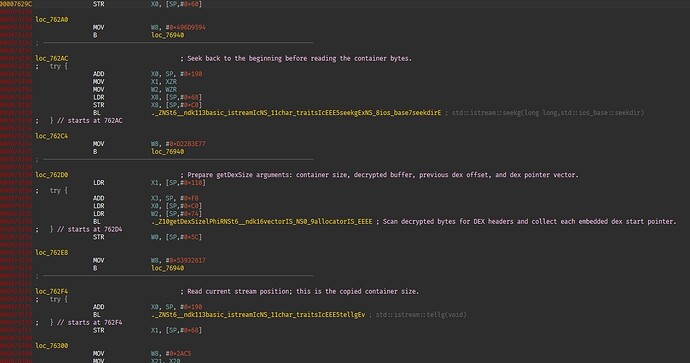

扫描 embedded Dalvik字节码

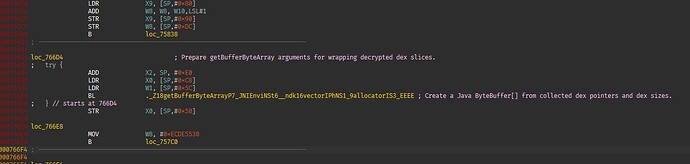

生成 + 返回解密后的buffer

0x3 `libATG_L.so`

java/stage2/code/com/bishopsoft/Presto/SDK/Presto.java 载入 libATG_L.so

public class Presto extends Application	// class@0000ff from classes2.dex
{
    private static String EGdataPath;
    public static String SDK_version = "2025091801";
    static CallBackReLogin callback;
    private static int checked_emul = 0;
    private static Context mContext;
    public static String packageList = "";
    private static Presto presto;
    public static String rootPath = "";
    private static String sData = "";
    static boolean scanning = true;

    static {
       Presto.presto = new Presto();
       System.loadLibrary("ATG_L");
    }

开头依旧狙击IDA反编译

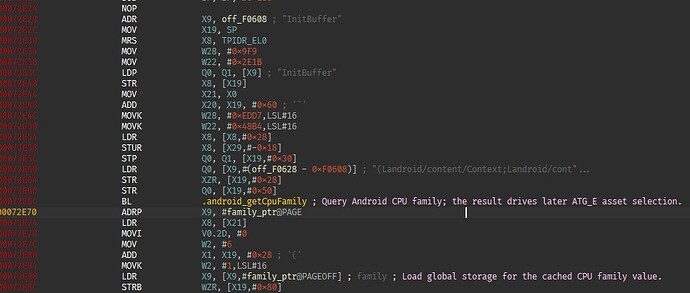

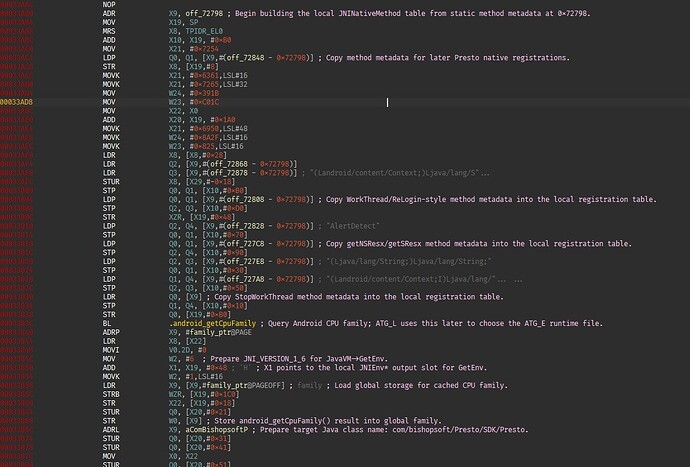

依旧注册函数查询CPU架构

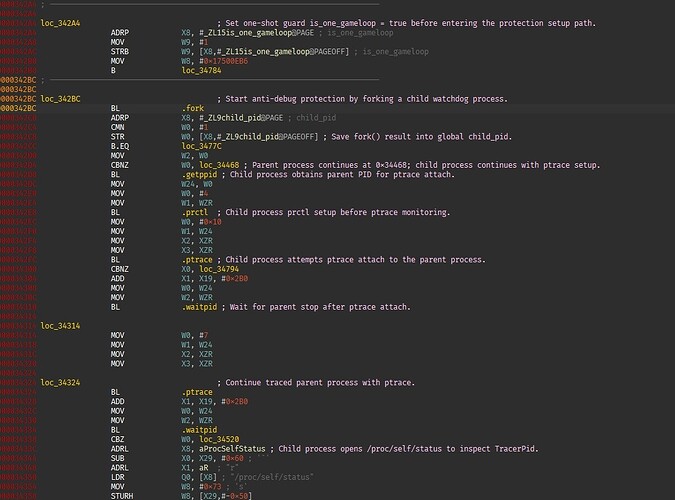

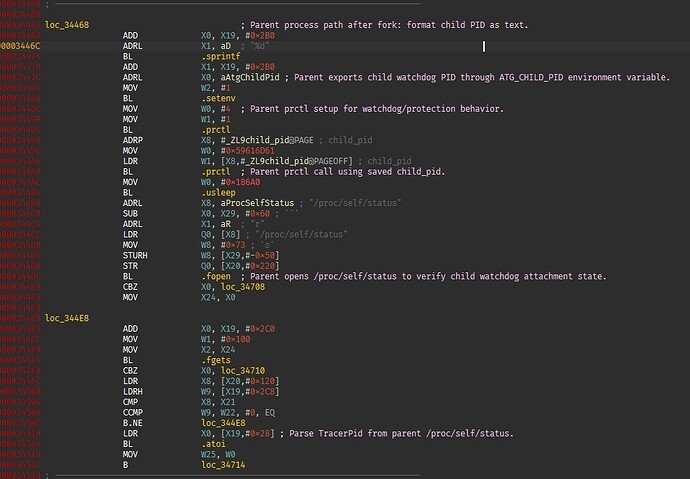

fork/ptrace 保护+反调试

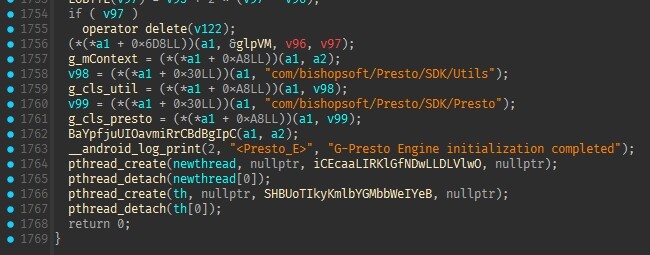

JNI_OnLoad 返回到 Java 开始 init，最终调用 WorkThread

public void Presto_Init(Context context){
   Presto.mContext = context;
   Presto.scanning = true;
   if (Presto.EGdataPath == null) {
      Presto.EGdataPath = Utils.getCPUABI(Presto.mContext);
   }
   Presto.rootPath = Utils.execByRuntime("pm path "+Presto.mContext.getPackageName());
   if (Presto.rootPath != null && !Presto.rootPath.isEmpty()) {
      Presto.rootPath = Presto.rootPath.replace("package:", "");
   }
   Presto.packageList = Utils.execByRuntime("pm list package");
   if (Presto.packageList != null && !Presto.packageList.isEmpty()) {
      Presto.packageList = Presto.packageList.replaceAll("\npackage:", ",");
   }
   Log.i("Presto", "SDK_Ver = "+Presto.SDK_version);
   Integer[] integerArray = new Integer[0];
   new ThreadScan(Presto.mContext, 0).execute(integerArray);
   return;
}

public class ThreadScan extends AsyncTask	// class@000102 from classes2.dex
{
    private Context mContext;
    private int option;
    private String result;
    public static String ResultScan = "";

    static {
    }
    public void ThreadScan(Context context,int _option){
       super();
       this.mContext = context;
       this.option = _option;
    }
    protected Object doInBackground(Object[] p0){
       return this.doInBackground(p0);
    }
    protected String doInBackground(Integer[] arg0){
       int recovery = 1;
       this.result = Presto.WorkThread(this.mContext, recovery);
       return this.result;
    }
}

根据CPU架构选择模块

  CpuFamily = android_getCpuFamily();
  if ( CpuFamily == ANDROID_CPU_FAMILY_X86_64 )
  {
    strcpy(&filename[strlen(filename)], "/ATG_E_x86_64.sec");
  }
  else
  {
    if ( CpuFamily == ANDROID_CPU_FAMILY_ARM64 )
    {
      v25 = strlen(filename);
      v26 = "/ATG_E_x64.sec";
    }
    else
    {
      if ( CpuFamily != ANDROID_CPU_FAMILY_X86 )
      {
        strcpy(&filename[strlen(filename)], "/ATG_E.sec");
        goto LABEL_64;
      }
      v25 = strlen(filename);
      v26 = "/ATG_E_x86.sec";
    }
    v27 = &filename[v25];
    v28 = *v26;
    v29 = *(v26 + 7);
    *v27 = v28;
    *(v27 + 7) = v29;
  }

解出临时 ._ATG_B.sec

  strcpy(file, g_dataPath);
  qmemcpy(v206, "FF8F2A6CDD9B3DB72CD301FB87035E34", sizeof(v206));
  strcpy(szHex, "2CD301FB87035E34FF8F2A6CDD9B3DB7");
  v30 = strlen(szHex);
  v31 = v30;
  if ( v30 >= 1 && (v30 & 0xF) == 0 && v30 >= 2 )
  {
    v32 = v30 >> 1;
    v33 = operator new(v32);
    memset(v33, 0, v31 >> 1);
    v34 = 0;
    v35 = szHex;
    v36 = v33;
    while ( Hex2Char(v35, &s) )
    {
      v37 = 0xFFFFFFFE - v34 - (~v34 | 0xFFFFFFFE);
      v35 += 2;
      v34 = (v37 ^ (v34 + 1)) + (v34 | 1) + 2 * (v37 & (v34 + 1));
      *v36++ = s.erk[0];
      if ( v34 >= v32 )
      {
        v38 = operator new(v31 >> 1);
        memset(v38, 0, v31 >> 1);
        *name = WzrBpTHKGekFnEGBsJVCCbpW(char *,int)::iv_key;
        aes_set_key(&s, "e38d99fb4434d3d485794c6b34cd5d1fB3B4801D0A7AC103B2BC08C10BC017E6", 0x100);
        v39 = 0;
        do
        {
          v40 = &v33[v39];
          aes_decrypt(&s, v40, &v38[v39]);
          v41 = 0;
          do
          {
            v42 = name[v41];
            v43 = ((v41 + v39) ^ -(v41 | v39)) + (v41 | v39) + 2 * ((v41 + v39) & -(v41 | v39));
            v44 = v38[v43];
            v45 = v44 | v42;
            v46 = -(((v44 + v42) ^ -v45) + 2 * ((v44 + v42) & -v45));
            v47 = 0xFFFFFFFE - v41 - (~v41 | 0xFFFFFFFE);
            v41 = (v47 ^ (v41 + 1)) + (v41 | 1) + 2 * (v47 & (v41 + 1));
            v38[v43] = (v46 ^ v45) + 2 * (v46 & v45);
          }
          while ( v41 < 0x10 );
          v39 = (v39 | 0x10) + ~v39 + (v39 | 1) + (v39 & 1) + ((0xFFFFFFEF - v39 - (~v39 | 0xFFFFFFEF)) ^ (v39 + 0x10)) + 2 * ((0xFFFFFFEF - v39 - (~v39 | 0xFFFFFFEF)) & (v39 + 0x10));
          *name = *v40;
        }
        while ( v39 < v32 );
        memset(&szHex[v32], 0, v31 - v32);
        memcpy(szHex, v38, v31 >> 1);
        memset(v33, 0, v31 >> 1);
        operator delete(v38);
        break;
      }
    }
    operator delete(v33);
  }
  strcat(file, szHex);
  v48 = fopen(filename, "rb");
  v49 = fopen(file, "wb");
  if ( v48 )
  {
    v50 = v49;
    fseek(v48, 0xFFFFFFFFFFFFFFFCLL, 2);
    v51 = ftell(v48);
    fread(&ptr, 1u, 8u, v48);
    v52 = ptr;
    v53 = v51 - v52 + ((v52 - 1) | ~v51);
    v54 = ((v53 + 1) ^ (v52 - v51 + (v51 | -v52))) + 2 * (((v53 + 1) & (v52 - v51 + (v51 | -v52))) + (v53 ^ ~(v51 - ptr)) + 2 * ((v51 - ptr) & ~v53));
    v55 = calloc(v54, 1u);
    v56 = calloc(v51, 1u);
    if ( v55 )
    {
      v57 = v56;
      if ( v56 )
      {
        fseek(v48, 0, 0);
        fread(v57, 1u, v51, v48);
        fseek(v48, v52, 0);
        fread(v55, 1u, v54, v48);
        fclose(v48);
        if ( v54 >= 1 )
        {
          v58 = 0;
          for ( i = 0; i < v54; v58 = i )
          {
            v60 = v55[v58];
            v61 = v57[v58];
            v62 = v61 | v60;
            v63 = -(((v61 + v60) ^ -v62) + 2 * ((v61 + v60) & -v62));
            v64 = 0xFFFFFFFE - i - (~i | 0xFFFFFFFE);
            i = (v64 ^ (i + 1)) + (i | 1) + 2 * (v64 & (i + 1));
            v55[v58] = (v63 ^ v62) + 2 * (v63 & v62);
          }
        }
        fwrite(v55, 1u, v54, v50);
        fclose(v50);
        free(v55);
        free(v57);
      }
    }
  }

完整性检查

  v277 = 0;
  v276 = 0u;
  v275 = 0u;
  v274 = 0u;
  v273 = 0u;
  v272 = 0u;
  v271 = 0u;
  v270 = 0u;
  v269 = 0u;
  v268 = 0u;
  v267 = 0u;
  v266 = 0u;
  v265 = 0u;
  v264 = 0u;
  v263 = 0u;
  *v262 = 0u;
  *filename = 0u;
  memcpy(name, "B3B4801D0A7AC103B2BC08C10BC017E6", 0x104u);
  strcpy(file, g_dataPath);
  szHex[0x20] = 0;
  memset(v243, 0, sizeof(v243));
  v242 = 0u;
  v241 = 0u;
  v240 = 0u;
  v239 = 0u;
  v238 = 0u;
  v237 = 0u;
  v236 = 0u;
  v235 = 0u;
  v234 = 0u;
  v233 = 0u;
  v232 = 0u;
  v231 = 0u;
  v230 = 0u;
  *szHex = v206[1];
  *&szHex[0x10] = v206[0];
  v65 = strlen(szHex);
  v66 = v65;
  v67 = v209;
  if ( v65 >= 1 && (v65 & 0xF) == 0 && v65 >= 2 )
  {
    v68 = v65 >> 1;
    v69 = operator new(v68);
    memset(v69, 0, v66 >> 1);
    v70 = 0;
    v71 = szHex;
    v72 = v69;
    while ( Hex2Char(v71, &s) )
    {
      v73 = 0xFFFFFFFE - v70 - (~v70 | 0xFFFFFFFE);
      v71 += 2;
      v70 = (v73 ^ (v70 + 1)) + (v70 | 1) + 2 * (v73 & (v70 + 1));
      *v72++ = s.erk[0];
      if ( v70 >= v68 )
      {
        v74 = operator new(v66 >> 1);
        memset(v74, 0, v66 >> 1);
        ptr = WzrBpTHKGekFnEGBsJVCCbpW(char *,int)::iv_key;
        aes_set_key(&s, "e38d99fb4434d3d485794c6b34cd5d1fB3B4801D0A7AC103B2BC08C10BC017E6", 0x100);
        v75 = 0;
        do
        {
          v76 = &v69[v75];
          aes_decrypt(&s, v76, &v74[v75]);
          v77 = 0;
          do
          {
            v78 = *(&ptr + v77);
            v79 = ((v77 + v75) ^ -(v77 | v75)) + (v77 | v75) + 2 * ((v77 + v75) & -(v77 | v75));
            v80 = v74[v79];
            v81 = v80 | v78;
            v82 = -(((v80 + v78) ^ -v81) + 2 * ((v80 + v78) & -v81));
            v83 = 0xFFFFFFFE - v77 - (~v77 | 0xFFFFFFFE);
            v77 = (v83 ^ (v77 + 1)) + (v77 | 1) + 2 * (v83 & (v77 + 1));
            v74[v79] = (v82 ^ v81) + 2 * (v82 & v81);
          }
          while ( v77 < 0x10 );
          v75 = (v75 | 0x10) + ~v75 + (v75 | 1) + (v75 & 1) + ((0xFFFFFFEF - v75 - (~v75 | 0xFFFFFFEF)) ^ (v75 + 0x10)) + 2 * ((0xFFFFFFEF - v75 - (~v75 | 0xFFFFFFEF)) & (v75 + 0x10));
          ptr = *v76;
        }
        while ( v75 < v68 );
        memset(&szHex[v68], 0, v66 - v68);
        memcpy(szHex, v74, v66 >> 1);
        memset(v69, 0, v66 >> 1);
        operator delete(v74);
        break;
      }
    }
    operator delete(v69);
  }
  strcat(file, szHex);
  v84 = dlopen(file, 1);
  v85 = obja;
  if ( v84 )
  {
    v86 = v84;
    v87 = strlen(name);
    v88 = v87;
    if ( v87 >= 1 && (v87 & 0xF) == 0 && v87 >= 2 )
    {
      v89 = v87 >> 1;
      v90 = operator new(v89);
      memset(v90, 0, v88 >> 1);
      v91 = 0;
      v92 = name;
      v93 = v90;
      while ( Hex2Char(v92, &s) )
      {
        v94 = 0xFFFFFFFE - v91 - (~v91 | 0xFFFFFFFE);
        v92 += 2;
        v91 = (v94 ^ (v91 + 1)) + (v91 | 1) + 2 * (v94 & (v91 + 1));
        *v93++ = s.erk[0];
        if ( v91 >= v89 )
        {
          v95 = operator new(v88 >> 1);
          memset(v95, 0, v88 >> 1);
          ptr = WzrBpTHKGekFnEGBsJVCCbpW(char *,int)::iv_key;
          aes_set_key(&s, "e38d99fb4434d3d485794c6b34cd5d1fB3B4801D0A7AC103B2BC08C10BC017E6", 0x100);
          v96 = 0;
          do
          {
            v97 = &v90[v96];
            aes_decrypt(&s, v97, &v95[v96]);
            v98 = 0;
            do
            {
              v99 = *(&ptr + v98);
              v100 = ((v98 + v96) ^ -(v98 | v96)) + (v98 | v96) + 2 * ((v98 + v96) & -(v98 | v96));
              v101 = v95[v100];
              v102 = v101 | v99;
              v103 = -(((v101 + v99) ^ -v102) + 2 * ((v101 + v99) & -v102));
              v104 = 0xFFFFFFFE - v98 - (~v98 | 0xFFFFFFFE);
              v98 = (v104 ^ (v98 + 1)) + (v98 | 1) + 2 * (v104 & (v98 + 1));
              v95[v100] = (v103 ^ v102) + 2 * (v103 & v102);
            }
            while ( v98 < 0x10 );
            v96 = (v96 | 0x10) + ~v96 + (v96 | 1) + (v96 & 1) + ((0xFFFFFFEF - v96 - (~v96 | 0xFFFFFFEF)) ^ (v96 + 0x10)) + 2 * ((0xFFFFFFEF - v96 - (~v96 | 0xFFFFFFEF)) & (v96 + 0x10));
            ptr = *v97;
          }
          while ( v96 < v89 );
          memset(&name[v89], 0, v88 - v89);
          memcpy(name, v95, v88 >> 1);
          memset(v90, 0, v88 >> 1);
          operator delete(v95);
          v67 = v209;
          break;
        }
      }
      operator delete(v90);
      v85 = obja;
    }

启动模块

LABEL_249:
  g_result[0] = 0;
  memset(&s, 0, 0x104);
  if ( p_result )
  {
    free(p_result);
    p_result = nullptr;
  }
  strcpy(&s, g_dataPath);
  *(s.erk + strlen(&s)) = 0x2F;
  if ( family == ANDROID_CPU_FAMILY_X86_64 )
  {
    strcpy(&s + strlen(&s), "ATG_E_x86_64.sec");
  }
  else
  {
    if ( family == ANDROID_CPU_FAMILY_ARM64 )
    {
      v152 = strlen(&s);
      v153 = "ATG_E_x64.sec";
    }
    else
    {
      if ( family != ANDROID_CPU_FAMILY_X86 )
      {
        strcpy(&s + strlen(&s), "ATG_E.sec");
        goto LABEL_259;
      }
      v152 = strlen(&s);
      v153 = "ATG_E_x86.sec";
    }
    v154 = (s.erk + v152);
    v155 = *v153;
    v156 = *(v153 + 6);
    *v154 = v155;
    *(v154 + 6) = v156;
  }
LABEL_259:
  if ( g_Ehandle || (g_Ehandle = dlopen(&s, 1)) != nullptr )
  {
    unlink(&s);
    if ( g_isScanning )
      return v67->functions->NewStringUTF(v67, g_result);
    v157 = dlsym(g_Ehandle, "WorkThread");
    if ( v157 )
    {
      g_isScanning = 1;
      m_infect_cnt = v157(v67, v85, m_option);
      if ( (m_infect_cnt & 0x80000000) == 0 )
        return v67->functions->NewStringUTF(v67, g_result);
      memset(&s, 0, 0x104);
      v158 = operator new(0xF0u);
      v262[0] = v158;

虚拟机检测（非常全的特征，可以抄过来用）

Build.BRAND == “generic”
Build.BRAND == “sdk”
Build.BRAND == “Microvirt”
Build.BRAND == “AMIDuOS”
Build.BRAND == “TTVM”
Build.MODEL == “AMIDuOS”
Build.MODEL == “Memu”
Build.MODEL == “TiantianVM”
Build.MODEL == “Droid4X”
Build.MODEL == “vmos”
Build.HARDWARE == “andy”
Build.HARDWARE == “vbox86”
Build.HARDWARE == “nox”
Build.HARDWARE == “windroye”
Build.HARDWARE == “goldfish”
Build.HARDWARE == “ttVM_x86”
Build.HARDWARE == “android_x86”
Build.HARDWARE == “android_x86_64”
Build.BOOTLOADER == “nox”
文件存在 /system/bin/droid4x
文件存在 /system/bin/droid4x-prop
文件存在 /system/bin/androVM-prop
文件存在 /system/bin/androVM-vbox-sf
文件存在 /fstab.intel
文件存在 /fstab.vbox86
文件存在 /fstab.vbox64
文件存在 /fstab.android_x86
文件存在 /fstab.android_x86_64
文件存在 /system/app/EmuCoreService/EmuCoreService.apk
文件存在 /system/app/EmuInputService/EmuInputService.apk
文件存在 /system/app/gpLogin/gpLogin.apk
文件存在 /system/app/gpLogin/gpLogin_new.apk
文件存在 /system/app/Helper/helper.apk
文件存在 /system/app/Helper/NoxHelp_en.apk
文件存在 /system/app/Helper/NoxHelp_en_new.apk
文件存在 /bin/nox-vbox-sf
文件存在 /bin/noxd
文件存在 /data/app/com.android.ld.appstore-1/base.apk
文件存在 /data/app/com.android.ld.appstore-2/base.apk
文件存在 /system/app/Launcher3/Launcher3.apk
文件存在 /system/priv-app/LDAppStore/LDAppStore.apk
文件存在 /data/user_de/0/com.android.flysilkworm
文件存在 /data/misc/profiles/ref/com.android.flysilkworm
目录可打开 /mnt/windows/BstSharedFolder
文件存在 system/app/IME/IME.apk
上一条 APK 的包名等于 com.microvirt.memuime
文件存在 /system/app/MuMuAudio/MuMuAudio.apk
文件存在 /system/app/com.mumu.store/com.mumu.store.apk
文件存在 /system/priv-app/MuMuAudio/MuMuAudio.apk
文件存在 /system/priv-app/com.mumu.store_overseas/com.mumu.store_overseas.apk
文件存在 /system/app/KiwiIntentSink/KiwiIntentSink.apk

0x3 `libATG_E.so`

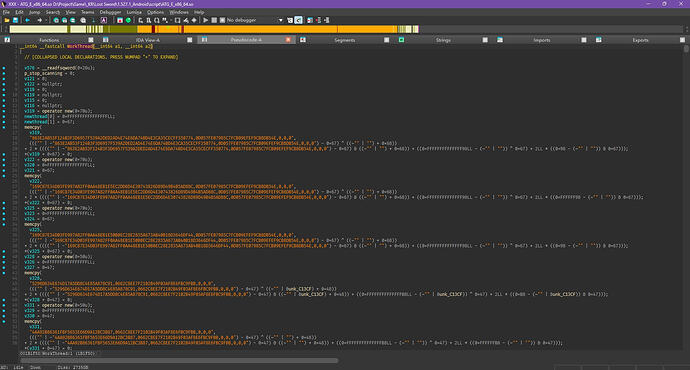

WorkThread 入口塞了一坨特征码

然后启动了两个线程

iCEcaaLIRKlGfNDwLLDLVlwO 还是做虚拟机检测，增加了下面的特征：

com.gspace.android
com.excean.gspace
com.excean.splay
com.excean.parallelspace
io.va.exposed
parallel.space
com.ludashi.dualspace
com.ludashi.superboost
com.app.hider.master.dual.app
com.app.hider.master.pro
com.hidespps.apphider
com.app.calculator.vault.hider
com.excelliance.multiaccount
multi.parallel.dualspace.cloner
do.multiple.cloner
com.lulu.luluboxpro
com.cloneapp.parallelspace.dualspace
com.pan.parallelspace
com.dualspace.multispace.android
com.pengyou.cloneapp

做crc32校验

初始化 libData.so，解出来是作弊工具的名称

AlphaGameBooster
CheatEngine
Freedom
Freedom
Freedom
Freedom
Freedom
Freedom
Freedom
Freedom
Freedom
GameCheater
GameCheater
GameCIH
GameGuardian
GameGuardian
GameGuardian
GameGuardian
GameGuardian
GameGuardian
GameHackerSpeed
GameHackerSpeed
GameHacker
GameHacker
GameHacker
GameHacker
GameHacker
GameHacker
GameHacker
GameKiller
GameKiller
GameKiller
GameKiller
GameKiller
GameKiller
GameMaster2
GameMaster2
GameMaster
GameMaster_opda
GameMaster_opda
GameMaster_opda
GameMaster_opda
GGAssistant
HoistMan
HoistMan
HoistMan
HoistMan
Huang
Huang
Huang
Huang
igamecool
igamecool
LuckyPatcher
MemSpector
MemSpector
MuzhiwanGamehelper
MuzhiwanGamehelper
PacketSniffer
PacketSniffer
RootCloakPlus
RootCloakPlus
RootCloak
RootCloak
RootCloak
RootCloak
SlashGameBuster
SlashGameBuster
SlashGameBuster
TcgameGamecheater
Touch18
Touch18
WoodPecker
Xiaojianjian
Xiaojianjian
xxAssistant
xxAssistant
xxAssistant
xxAssistant
Youxia
Youxia
Zhangkongapp
Zhangkongapp
Zhangkongapp
Zhangkongapp

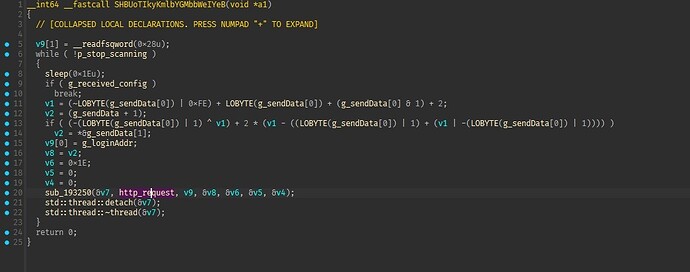

SHBUoTIkyKmlbYGMbbWeIYeB只负责轮询配置

0x4 `global-metadata.dat`

读进内存变换一下文件头，做一下xor完事

0xF

反作弊力度和LIAPP坐一桌，CrackProof比这玩意稍强
libunity.so和libil2cpp.so不加壳，没有云下发，甚至安全模块包含完整的DWARF
7196e54684e89fcf3d971058a75bd5b7

2 个帖子 - 2 位参与者

阅读完整话题

来源: LinuxDo 最新话题查看原文

0x0

Lost Sword - Google Play 上的应用

라르고소프트|LARGOSOFT

0x1 整体流程

0x2 libATG_D.so

0x3 libATG_L.so

0x3 libATG_E.so

0x4 global-metadata.dat

0xF

延伸阅读

0x2 `libATG_D.so`

0x3 `libATG_L.so`

0x3 `libATG_E.so`

0x4 `global-metadata.dat`
